Manufacturer & Exporter of a wide range of products which include Free Flowing Liquid Packing Machine such as Automatic Milk Packing Machine Double Head, Liquid Pouch Packing Machine, Small Liquid Packing Machine and Automatic Liquid Packing Machine.

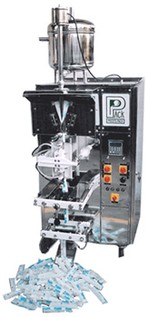

Automatic Milk Packing Machine Double Head

Under the extensive array of industrial products, we have brought forward Semi Automatic Liquid Packing Machine. These machines deliver accurate performance and are available at industry leading prices.

Features:
  • Convenient maintenance
  • Longer working life
  • Low power consumption
Machine Model
PP-5000 D.I.O - DOUBLE HEAD
Height
2.2 Mtrs
Width
1.55 Mtrs
Depth
0.75 Mtrs
Electricity
220 V +/-5% 1Ø / 415 V +/-5% 3Ø
Peak Power Rating
8 KW
Power Consumption
2 KW/Hr
Compressed Air
6 kg/cm3
Air Consumption
60 M3/Hr
Cooling Water Circulation
150 Ltrs./Hr. AT 10-15°C
Range
50-1000 ML
Capacity
5000 Pouches/Hr
Film Material
LLD
Sealing System
Impulse
Accuracy
+/-2 ml
Liquid Pouch Packing Machine

Available in standard dimension, an extensive array of Liquid Pouch Packing Machine is being introduced. Offered machines as used prominently for packaging purposes have gained wider market acceptance. Easy to maintain and delivering excellent performance, these machines are recommended to customers.

Features:
  • Longer functional life
  • Compact design
  • Sturdy finish
Specifications:
Overall Dimension MTS (HxWxD)
1.40x0.70x1.05 Mtrs
Weight
350 Kgs
Electricity
230V 50 Hz Single Phase
Peak Power Rating
3 KW
Cooling Water
Ordinary
Range
20-200 ml
Capacity
3000 Pouches/hr
Pouch Width
25-100 mm
Film Width
70-225 mm
Type of Vertical Seal
Overlap Seal
Sealing System
Impulse
Film Material
LLD
Film Thickness
60-100 Microns
Accuracy
+/-2%
Small Liquid Packing Machine

Being a quality-driven firm we have introduced Small Liquid Packing Machine. Our experts carry out the manufacturing procedure as per the industry approved norms and thus, are introduced imparted with capability to deliver excellent performance.


Features:
  • Easy to operate
  • Convenient maintenance
  • Longer working life
Specifications:
Overall Dimension MTS (HxWxD)
1.4x1.6x1.1 Mtrs.
Weight
700 Kgs
Electricity
230V 50 Hz Single Phase
Peak Power Rating
6 KW
Cooling Water
Ordinary
Range
50-500 ml.
Capacity
4800 Pouches/hr
Pouch Width
150 mm
Film Width
325 mm
Type of Vertical Seal
Overlap Seal
Sealing System
Impulse
Film Material
LLD
Film Thickness
50 - 100 Microns
Accuracy
+/-2%
Pouch Dimensions for 250 ml
L 100 mm x B 150 mm
Pouch Dimensions for 500 ml
L 160 mm x B 150 mm
Automatic Liquid Packing Machine

We are engaged in manufacturing and supplying Automatic Liquid Packing Machine to our customers. Our experts use latest technology for manufacturing of these products and thus, bring forth products of incomparable quality standard.

Features:
  • Accurate performance
  • Easy to operate
  • Anti-corrosion

Details:
  • Twin head construction with independent head operation
  • Pouch style option - Centre seal pillow pouch and Three side seal pouch
  • Flexibility to pack to different product
  • Fully mechanical machine
  • No compressor required
  • Facility for maintaining either track of the machine keeping the other track in operation
  • UV sterilization of film
  • End of fill roll indication
  • Mechanical cam driven operations
  • Dosing by electro mechanical filling device for no product wastage during start up
  • Simple & User friendly operations
  • Thyristorised impulses sealing system
  • Optional facility for in component head/track operation with simultaneous punching.

Optional Accessories:
  • Photo eye and data coder
  • Pouch width options

Advantages of PLC:
  • Increases or decreases +/- degree centigrade in temperature and +/- ml in quality by adjusting our feather touch keys on the front operating panel.
  • The other sophisticated and ultimate features like pouch length volume and controlling temperature and speed of the machine can be selected by one touch on the front panel.
  • We can pack different quantities at different speed like 200 ml at 50 pouches per minute 500 ml 40 to 50 1000 ml 30-40 pouches per minute.
  • Power consumption will come as and when the speed of the machines is reduced.
Specifications:
Machine Model
PP-2500S - Single Head
Height
2.2 Mtrs
Width
0.92 Mtrs
Depth
0.75 Mtrs
Electricity
220 V +/-5% 1Ø / 415 V +/-5% 3Ø
Peak Power Rating
4 KW
Power Consumption
1 KW/Hr
Compressed Air
6 Kg/cm3
Air Consumption
35 M3/Hr
Cooling Water Circulation
100 Ltrs./Hr. at 10-15 Deg.C
Range
50-1000 ML
Capacity
2500 Pouches/Hr
Sealing System
Impulse
Accuracy
+/-5 ml
